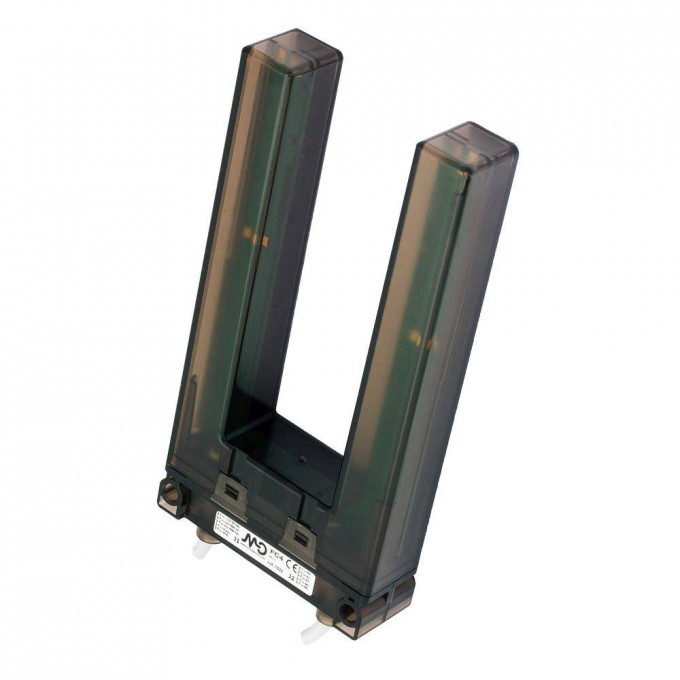

Фотоэлектрический датчик M.D. Micro Detectors FC4/A-00 компактный MD MICRO DETECTORS 334536
Артикул: 334536
Цена: по запросу
Есть в наличии
Работаем с 44ФЗ, 223ФЗ, 275ФЗ
Аккредитация на АСТ ГОЗ
Доставка вМосква
Самовывоз из магазина0 руб.
по предварительному заказу
(г. Москва, м. Таганская,
ул. Большие Каменщики, д. 6, стр. 1)
(г. Москва, м. Таганская,
ул. Большие Каменщики, д. 6, стр. 1)
Курьером (1-2 рабочих дня)0 руб.
Самовывоз из ПВЗ (1-2 рабочих дня)0 руб.
ХАРАКТЕРИСТИКИ
Гарантия
- 12 месяцев
Сертификаты
- CE
Output type
- 2 x complementary PNP
Switching frequency
- 100 hz with 1/1 dark-light
Operating Voltage
- 10 … 30 Vdc
No-Load supply current
- ? 70mA
Load current
- ? 300mA
Leakage current
- ? 10µA
Output voltage drop
- ? 2,5V @ Iload = 100mA
Max ripple content
- < 5Vpp
Emission
- Infrared
Interference to external light
- 10000 lux (artificial light)
Dimensions
- 26,4 x 83 x 162mm
Weight
- 200g
Housing Material
- PC
Connections
- 2 x cable
Operating temperature
- -20°C … + 55°C
Approvals
- CE
EMC compatibility
- Conforming with EMC directive according with EN60947-5-2
Shocks and vibrations
- Shock resistance according to IEC60068-2-27: 3 axes x 6, half sine, Acc: 30g, Dur: 11s vibration resistance according IEC60068-2-6: freq:10…55hz, Ampl:0,5mm, Sweep:5min, Fr: 3x30min
Degree of protection
- IP67
Beam angle
- ± 15°
Storage temperature
- -40°C … +75°C
Sensibility
- 1 sheet of 80g/m2 white paper
Tilting hysteresis
- 7mm
Optics diameter
- 3mm
Sampling period
- 4ms
4 optical scan period
- 600µs
Response time outputs ONO and ONC
- 4,7ms
Response time contact output A
- 8ms (open), 500ms (close)
Optical power class
- 1 (no danger)
Maximum capacitance load
- 300mA
Test input levels (expected, but not connected)
- LO ? 5V (or open), HI * 15V according to IEC61131-2 (2007)
VDE protection class
- III (max. voltage 50VAC), 500V (insulation)
Output A (alarm)
- Electromechanical contact, 1A, 30Vdc, no short circuit protection
Humidity
- 15% … 95%
Особенность
ОПИСАНИЕ
Фотоэлектрический датчик M.D. Micro Detectors FC4/A-00 компактный от MD Micro Detectors — промышленное решение Фотоэлектрические датчики, разработанное с учетом требований эксплуатации. Компания Mdmicfrussia.ru специализируется на промышленном оборудовании для любых условий работы
Наши преимущества:
- Выгодные условия поставки и ценообразования
- Своевременная отгрузка и логистика по России
- Полное сопровождение: от консультации до запуска
- Только оригинальная продукция от производителей
- Прямые поставки и оптимальные сроки доставки
Характеристики - M.D. Micro Detectors SpA FC4/A-00
Detection properties Outputs Electrical data Mechanical data Test/Approvals
